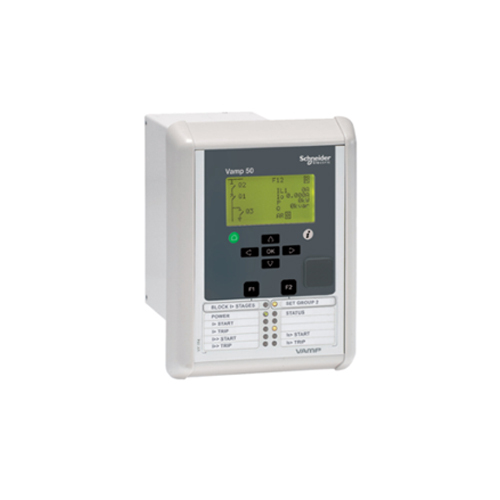

Vamp 50 Motor Protection

Price 57000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Vamp 50 Motor Protection Specification

Contact Form
1CO/2CO programmable outputs

Protect Feature
Other

Contact Resistance
<50 m Milliohm (m)

Dielectiric Strength
2 kV, 50 Hz, 1 min between terminals and earth Kilopascals (KPa)

Working Temperature
-25C to +60C Celsius (oC)

Coil Voltage
24-250 V AC/DC Volt (V)

Mechanical Life
>10 million operations Minutes

Contact Material
AgCdO or AgNi

Coil Power
<4 VA

Power Consumption
<7 VA Volt-Ampere (VA)

Ambient Temperature
-25C to +55C Celsius (oC)

Product Type
Protection Relay

Insulation Resistance
>100 M at 500 VDC

Theory
Other

Usage
Protection for LV and MV feeders and motors

Contact Load
High Power

Operate Time
<40 ms Seconds

Terminal Type
Other

Rated Voltage
110-240 VAC / 24-250 VDC Volt (V)

Supply Terminal
Screw terminal / plug-in

Size

Color
Grey / Black

Dimension (L*W*H)
144 mm x 144 mm x 90 mm Millimeter (mm)

Weight
Approx. 1.25 kg Kilograms (kg)

Warranty

Display Type
LCD Multifunction Display

Phase Fault Detection
Yes

Mounting Type
Panel Mount (flush mounting)

Communication Protocols
Modbus RTU, IEC 61850 (optional)

Protection Class
IP54 (front), IP20 (rear)

Reset Function
Manual/Automatic

Trip Circuit Supervision
Integrated

Time Synchronization
Via communication or IRIG-B input

Events and Disturbance Recording
Yes, non-volatile memory

Certification/Compliance
CE, IEC 60255

User Interface
Keypad, LCD & PC configuration

Auxiliary Power Supply
24-250 V AC/DC

Data Logging
Yes, with timestamp

Software Support
VampSet Software

Status LEDs
Yes, multiple indication LEDs

Frequency Range
50/60 Hz

Input and Output
6-12 configurable binary inputs, 5 binary outputs

Vamp 50 Motor Protection Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Vamp 50 Motor Protection

The Vamp 50 Series Protection Relay delivers elite, unassailable protection for LV and MV feeders and motors, boasting a customizable suite of features and significant savings over conventional systems. Its multi-functional LCD, robust Modbus RTU/optional IEC 61850 communication, event logging, and versatile mounting elevate performance to a lofty standard. Integrated trip circuit supervision, reset modes, advanced fault detection, and VampSet software support ensure swift, reliable operations. Order today to experience unmatched reliability for your critical industrial or utility applications, with compliance to CE, IEC 60255, and IP54 front protection.

Advanced Features and Versatile Applications

Manufactured with high-quality grey/black housing, the Vamp 50 Series is engineered for demanding environments, providing comprehensive protection for both LV and MV feeders and motors. Its microprocessor-based design, wide voltage range, and robust mechanical life offer resilience and adaptability, making it ideal for diverse industries including power distribution, manufacturing, and infrastructure. With flexible input/output configurations, this relay suits custom applications, ensuring optimal usage and extended service across various protection scenarios.

Prompt Delivery and Reliable Supply

Every proposal amount is managed with care, ensuring that your Vamp 50 Series order is swiftly dispatched, securely packaged, and fully traceable. Delivery times are minimized thanks to a robust supply ability, accommodating both standard and urgent requirements. We offer sample policies for bulk buyers and ensure all units are thoroughly tested and protected during shipment. Partner with us for consistent supply and professional support within India.

FAQ's of Vamp 50 Series Protection Relay For LV And MV Feeders And Motor:

Q: How does Vamp 50 Series Protection Relay ensure reliable protection for LV and MV feeders and motors?

A: The relay utilizes advanced microprocessor technology, secure mounting, multiple configurable inputs/outputs, and high-precision fault detection to deliver constant and reliable protection across a range of applications.

Q: What communication protocols does the Vamp 50 Series support for integration?

A: It supports Modbus RTU as standard, with IEC 61850 available as an option, allowing seamless integration into modern substation automation systems.

Q: When can I expect my order to be dispatched after placing a proposal amount?

A: Orders are dispatched promptly upon confirmation of the proposal amount, with standard packaging ensuring safety and traceability throughout shipment. Delivery timelines are optimized based on supply availability and destination within India.

Q: Where can I use the Vamp 50 Series Protection Relay besides LV/MV feeders?

A: Beyond feeders and motors, this relay is suitable for power plants, industrial automation systems, utility substations, and any application requiring robust electrical protection and monitoring.

Q: What are the key benefits of the customizable inputs and outputs provided by the device?

A: Customizable binary inputs and outputs enable tailored protection schemes, flexible operations, and easier integration, adapting the relay's functionality to specific plant or system needs.
